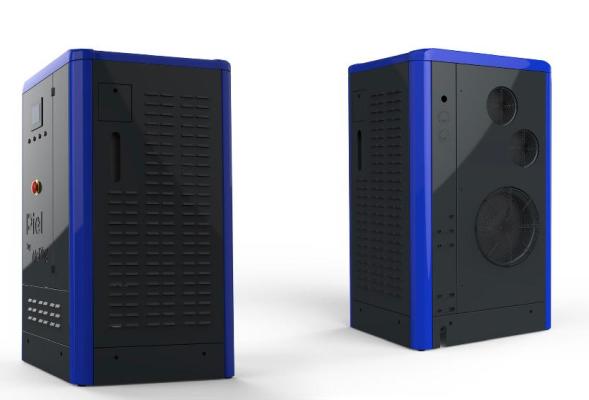

Hydrogen Generator McPhy Piel S 6.0 MP

Technical specifications

Model 6.0

Working Pressure 8 barg

Max. Hydrogen Production Rate 4 Nm3/h

Max. Oxygen Production Rate 2.0 Nm3/h

H2 Purity (downstream electrolyser) Up to 99,5 ± 0,3 % (dry basis)

(H2O saturated at the temperature of delivery, < 5 000 ppm O2 at full load) Higher purity can by achieved with loose accessories

Range of Room Temperature +5 °C < T < +35 °C

Electrolyte 20 % NaOH

Approx. Electrolyte Quantity 63 L

Demineralized Water Consumption < 1 L/Nm3 of H2

Power supply

Model S 4.5

Voltage 3 x 400 V AC ± 5 %

Phases 3P + N + PE

Frequency 50 Hz ± 1 %

Expected consumption at max load 32 kW

Cooling System

Gas Cooling System Air Heat Exchanger

Electrolyte Cooling System Water Cooled-Optional External Dry Cooler

Mass & Size

Dimensions (L x W x H) 127x127x192 cm.

Weight 850 Kg

Number of Cell Stacks 1

Certifications

CE : PED, EMC, Machinery
